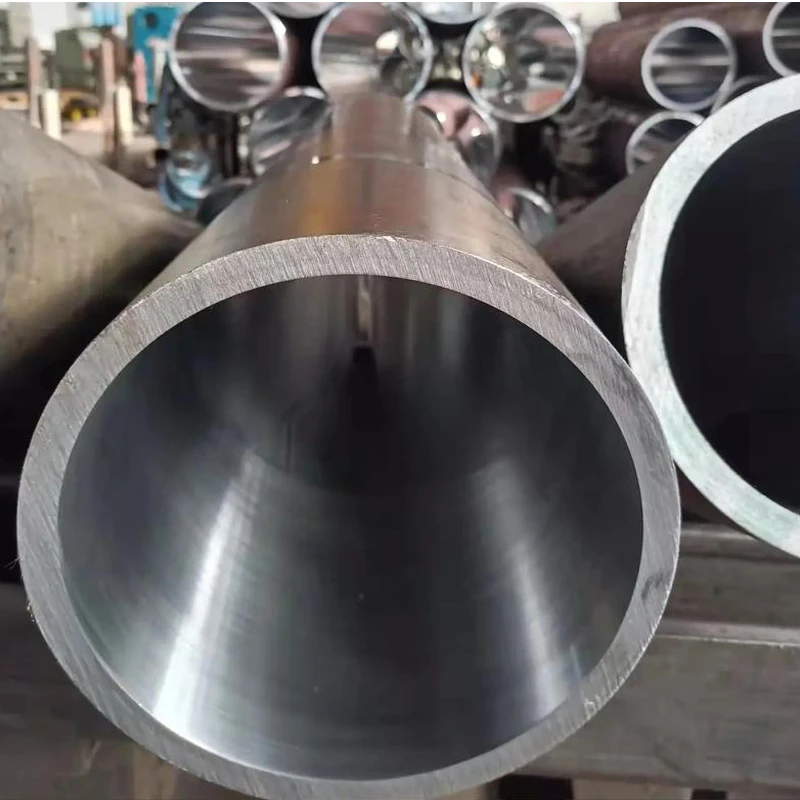

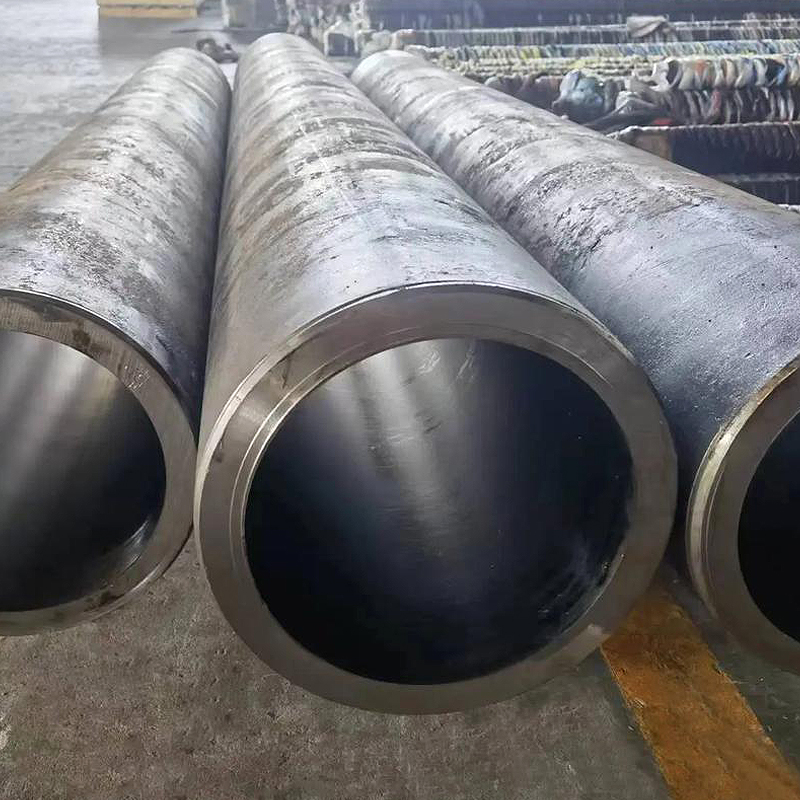

Honed Tube
Product Type: Carbon Seamless Honed Steel Tube,Cold Drawn Carbon Steel Seamless Honed Tube,Honed Tube Carbon Seamless Saw Steel Pipe Tube
OD Size : 20mm – 1500mm
Length: max 16m
Type: Seamless, Hot Rolled, Cold Rolled, Cold Drawn
Straightness:≤ 0.5/1000
Roughness:0.2-0.4 u
Tolerance EXT: DIN2391, EN10305, GB/T 1619
Tolerance INT:H7,H8,H9
Protection:Anti-rust oil on inside and outside surface, plastic caps in both ends.
Packing: Bundle with steel strip and PE sheet or wooden case
CONTACT US

金泰莱-详情首图 拷贝


Shandong JintaiLai Steel Co., Ltd. is a professional carbon steel pipe manufacturer with ISO CE certificate and a large factory with a productivity of 500,000 tons per month. We supply from wall thickness 0.5-300mm, including seamless carbon steel pipe and welded carbon steel pipe. Custom sizes available. We have large stocks for fast delivery, and provide free samples and customized services. The main markets are distributed in Europe, North America, South America, Africa, Southeast Asia and Oceania. The company has established stable cooperative relations with customers in more than 100 countries and regions.


Mechanical Property:
Delivery
condition
cold finished(hard)(BK)Cold drawn and stress-relieved(BK+S)
Steel gradeRm MPaElongation
A5(%)
Rm MPaReH MPaElonggation
A5(%)
20#≥550≥8≥520≥375≥15
16Mn≥640≥5≥600≥520≥14
ST52(E355)≥640≥5≥600≥520≥14
SAE1026≥640≥5≥600≥510≥12
45#≥650≥5≥600≥510≥12

Standard Size:
I.D(mm)O.D(mm)WT(mm)I.D(mm)O.D(mm)WT(mm)I.D(mm)O.D(mm)WT(mm)
405059010051401568
40526901057.514016010
40557.5901101014016512.5
40589901141214016814
5060595105514017010
50657.5951107.514018020
507010100110515017010
607051001157.515017512.5
607261001201015018015
60757.510012512.516018010
60801010012713.516018512.5
637351001301516019010
637561101257.516020020
63766.51101301017019010
63787.51101401517019512.5
63808.51151307.517020015
6383101151351018020010
708051201357.518020512.5
708261201401018021015
70857.512014512.518022020
7090101201501520022010
758551251407.520022512.5
75907.512514512.520023015
75951012515012.520023517.5
8090512515213.520024522.5
809261251551522025015
80957.512516017.522027025
80100101301457.522027326.5
80102111301501024027015
8010512.51301601525029020
801101513516012.525029924.5
Special requirement230.525411.75


碳钢管-参数后

碳钢焊管-参数后 拷贝

详情标题1-产品详情 拷贝


Our seamless carbon steel pipes are manufactured from high-quality grades including ASTM A106, API 5L, and ASTM A53, available in sizes from 1/8" to 24" OD with wall thicknesses of SCH10 to SCH160. These pipes feature excellent pressure resistance and durability, making them ideal for oil & gas, petrochemical, and high-pressure fluid transportation applications. Custom lengths (6m-12m) and end treatments (beveled, threaded) available.


1无缝管-产品详情 拷贝



详情标题2-生产线 拷贝


Produced using precision hot-rolled or cold-drawn processes, our seamless pipes undergo strict quality control during piercing, elongation, and sizing. Equipped with automated ultrasonic testing (UT) and eddy current inspection systems, we ensure consistent wall thickness (±10%) and superior internal/external surface quality.


2无缝管-生产线 拷贝



详情标题3-产品检测 拷贝


The manufacturing process utilizes a fully automated intelligent control system with digital monitoring from raw material pretreatment through continuous rolling and annealing treatment. Equipped with German-engineered 4-high reversible rolling mills and continuous annealing furnaces, we ensure consistent mechanical properties throughout each coil. Online non-destructive testing equipment provides real-time surface defect and microstructure inspection, while precision slitting units guarantee perfect coiling flatness. Our ISO9001-certified production involves 16 quality checkpoints from molten steel to finished products, ensuring uncompromising quality throughout the entire manufacturing process.


3无缝管-检验 拷贝



详情标题4-包装运输 拷贝

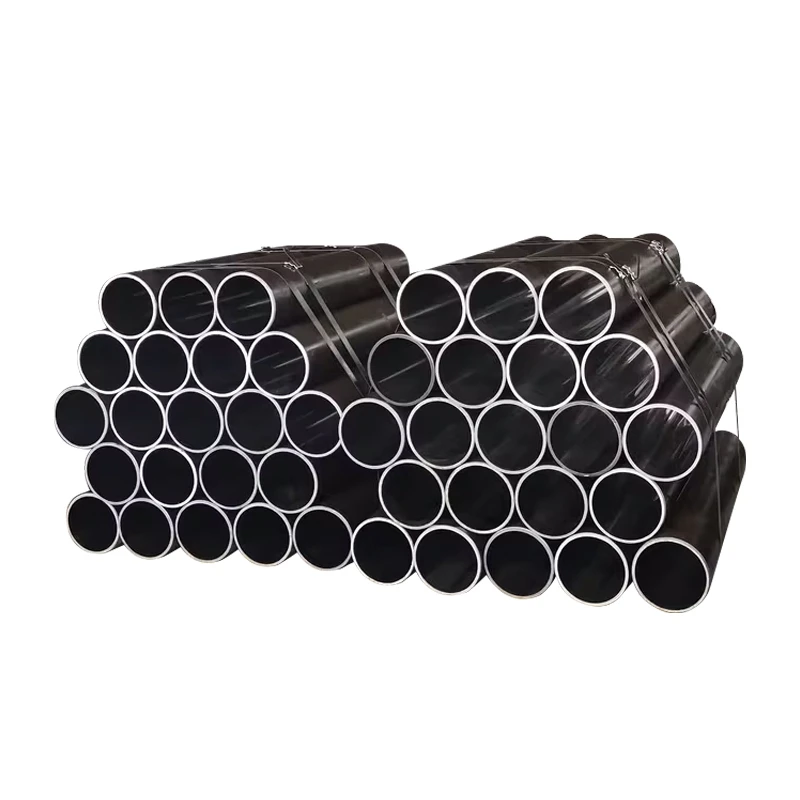

Excellent packaging: waterproof paper and plastic film + iron cover + at least three strapping straps + strapping straps fixed on iron or wood pallets can effectively protect products from corrosion and various climate changes during transportation. Generally speaking, we ship from Shanghai, Tianjin, Qingdao and Ningbo ports. We have worked with many experienced shipping companies for a long time to find the most suitable mode of transportation for you.


4无缝管-包装运输 拷贝
